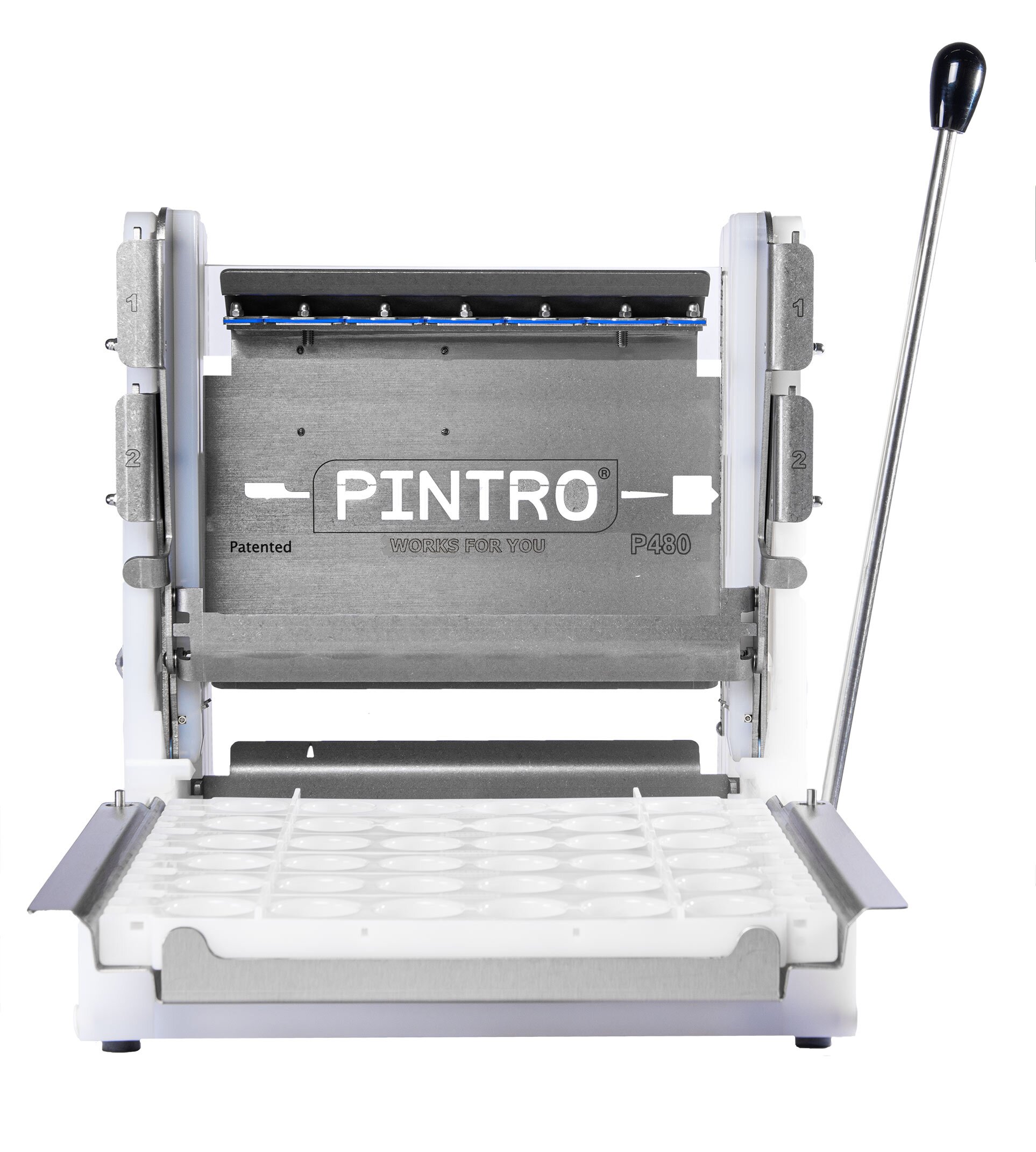

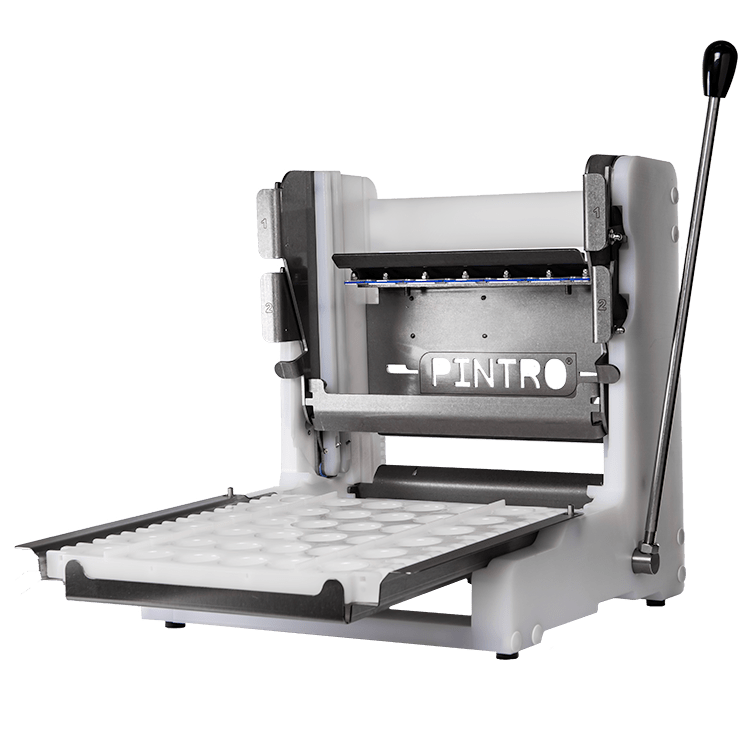

P480
The PINTRO P480 is a skewer machine for supermarkets, caterers, hotels and restaurants, canteens, industrial kitchens, party services… It is intended for the production of several hundred brochettes per day, a number of times per week
- 480 skewers per hour
- Maintains a traditional-style look and feel for the product
- Ergonomic and hygienic operation
- All skewers have an even look
Specifications
- Maximum capacity: 480 skewers per hour
- Number of operators: 1-3
- Skewer weight: 5 to 400 grams
- Stick length: 120 to 400 mm, diameter 3 to 6 mm
- Type of stick: wood & bamboo, round, gunshape (Teppo Gushi) and stainless steel*
- Type of skewer / kabob: satay, shashlik, skewer, kabob, poultry, fish, vegetable, fruit, candy, …
- FDA compliant components: mainly 304 stainless steel and HDPE1000
- Cleaning: machine and components are dishwasher safe and may be cleaned using a hot water high pressure hose (max 70°C).
- Maintenance: fully mechanical machine, no lubrication needed.
* The stainless steel sticks must have an arrow shaped tip >. The use of sticks with diagonally cut tips will result in damaging the moulds or create hazardous situations. Use stainless steel sticks that are intended for machine use only!
Fast and safe operation
We recommend working with at least 2 people when using this machine.
One person does the preparation by filling the product moulds while the other one operates the PINTRO skewering machine. To optimise productivity, a constant supply of filled product moulds for the PINTRO P480 operator needs to be maintained.
Test our PINTRO P480 skewering machine? Discover all the advantages of this machine during a demonstration.
Production principle video
Finished product

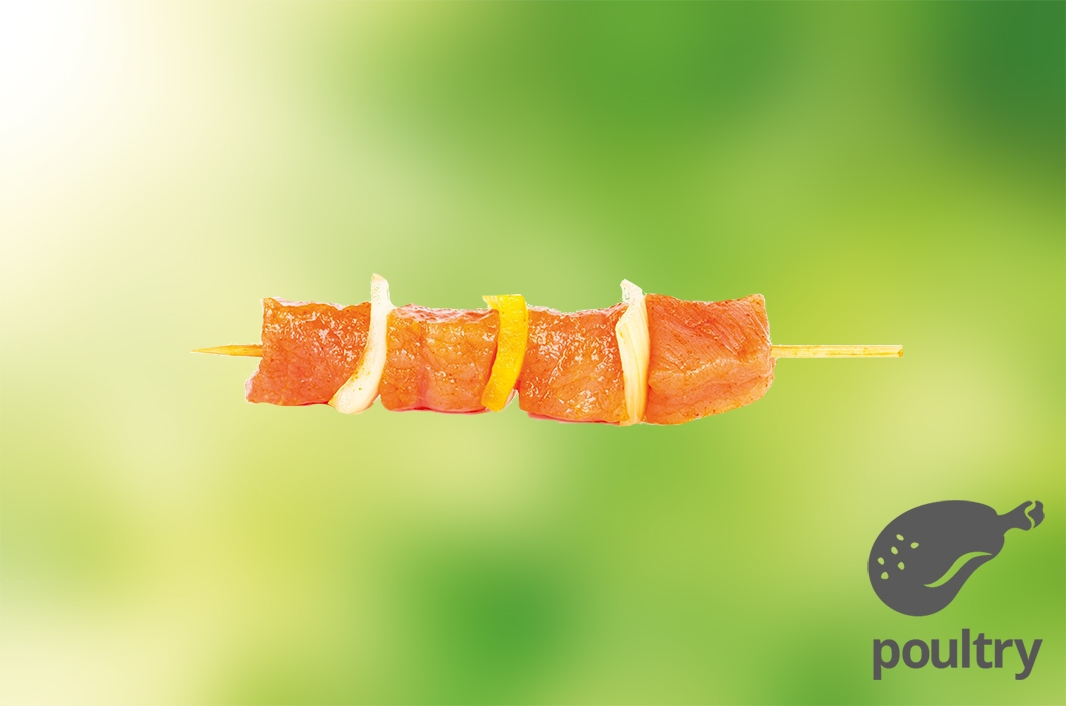

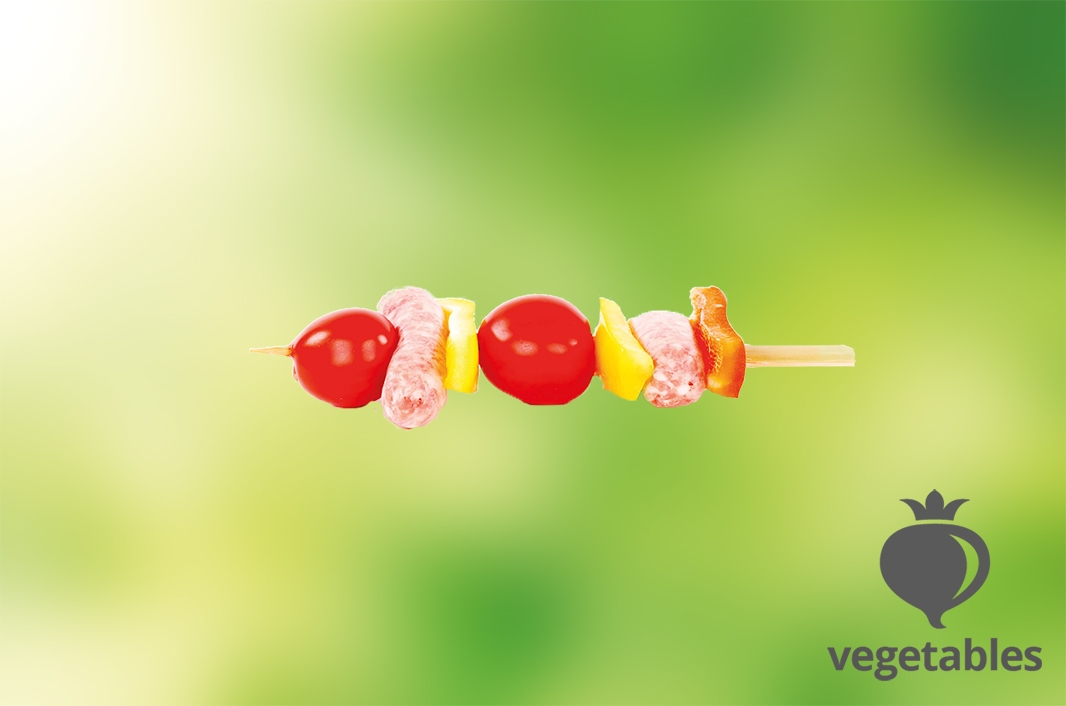

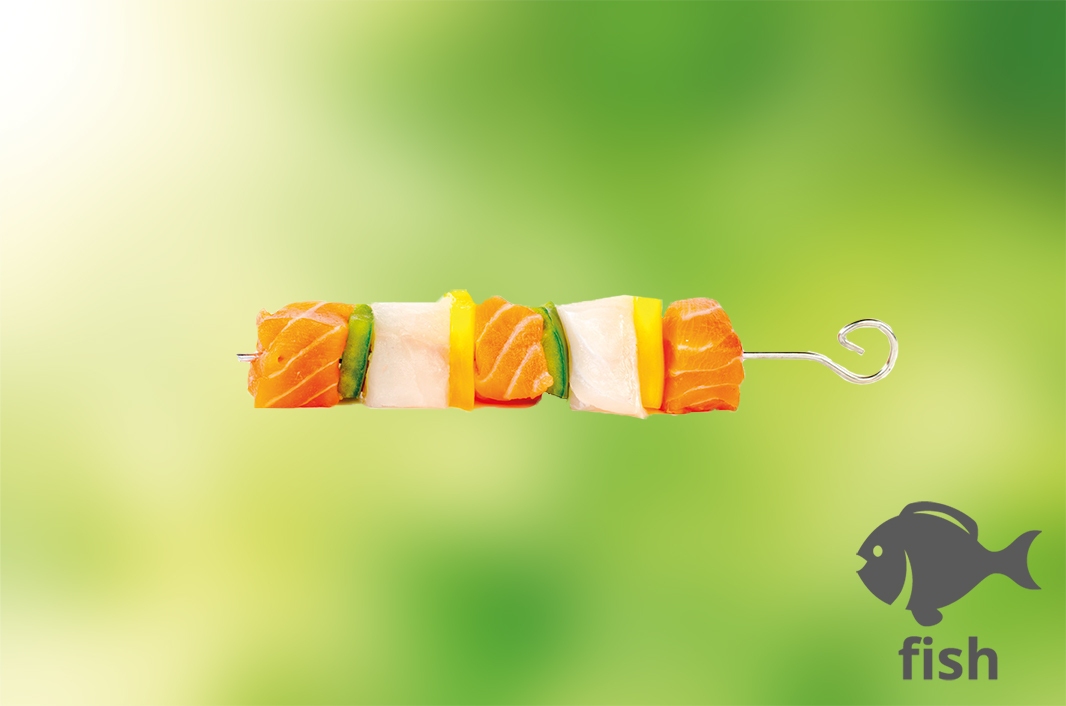

Meat, fish, vegetables, fruit,…our PINTRO P480 makes great skewers!
- All skewers / kabobs are even
- Traditional-style look and feel
- Spacing of the ingredients can be defined
- Number of pieces / chunks can be adjusted

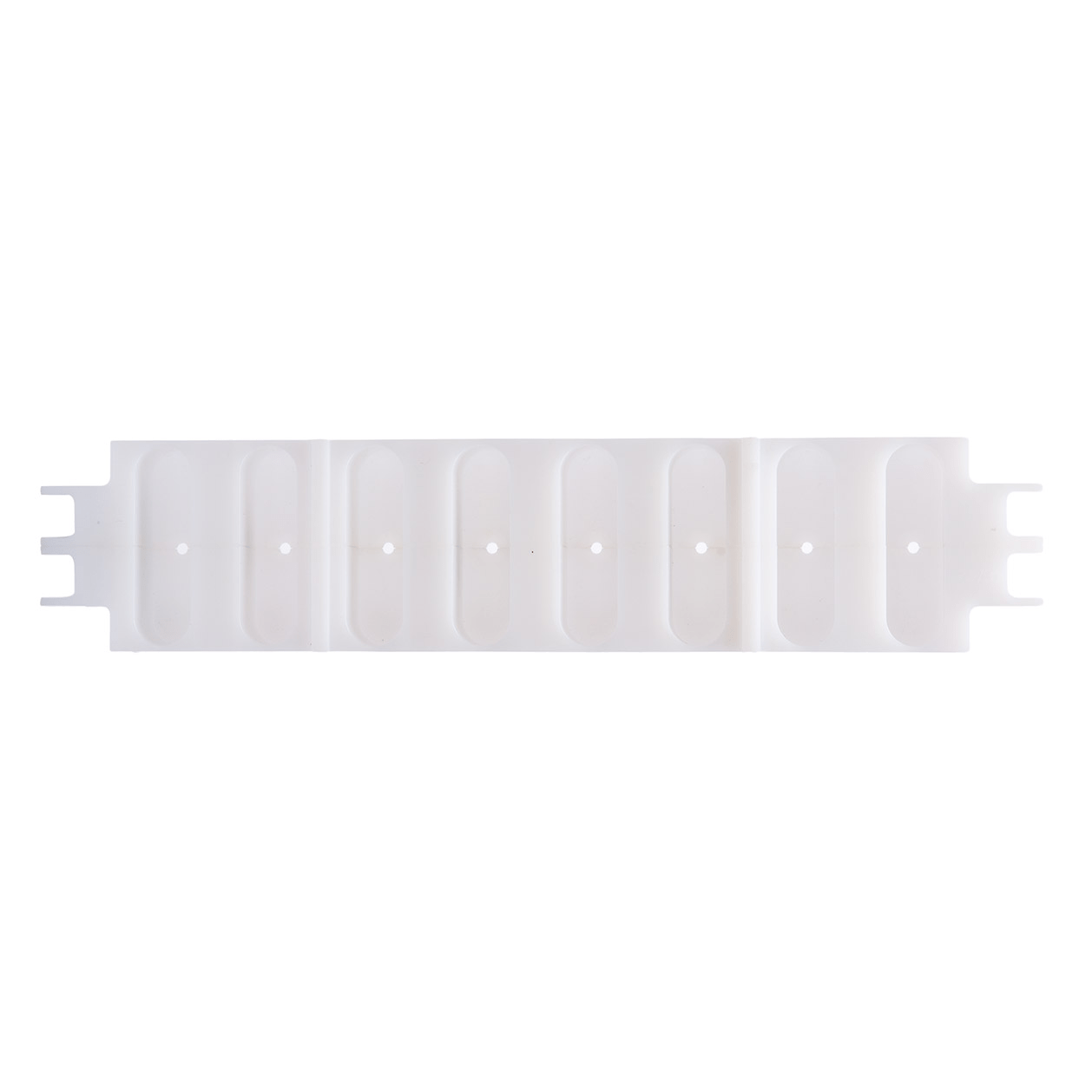

Custom made product trays / moulds
A selection of standard product trays allows you to produce perfect skewers. The choice of the appropriate mould will ensure that the skewer stick always pierces the ingredient in the centre. Ask for assistance in order to select the moulds that will provide the best results for you.

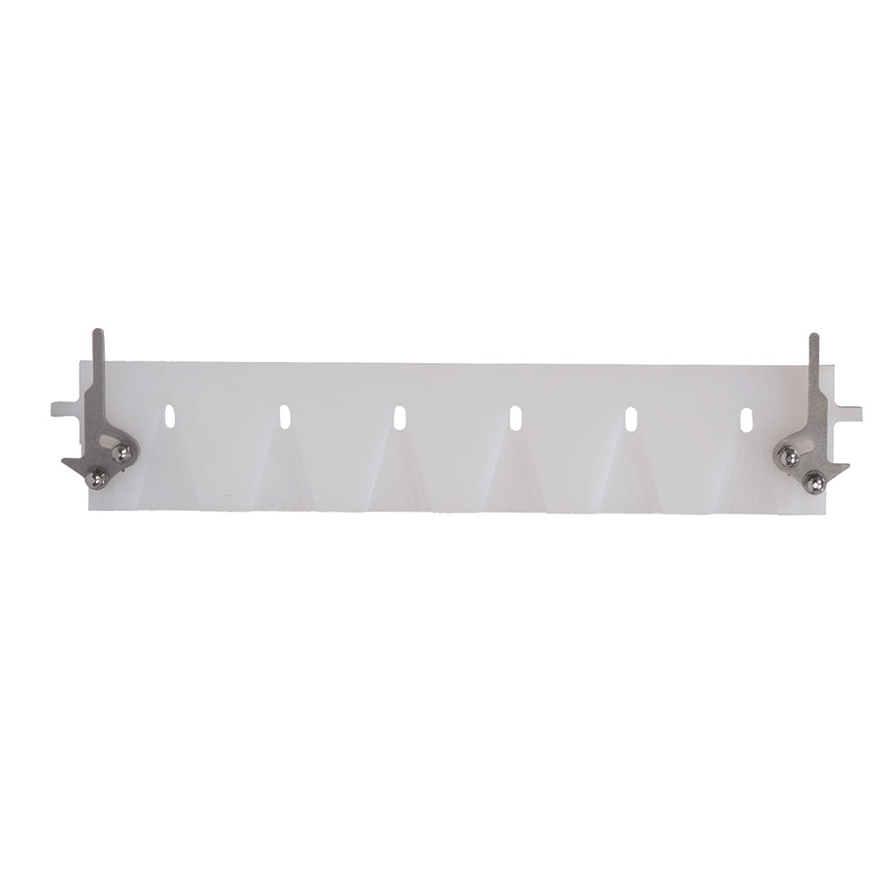

Removable slat
You can switch from one type of stick to another by simply exchanging the removable slat.
- For round and stainless steel sticks
- For gunshape sticks (Teppo Gushi)

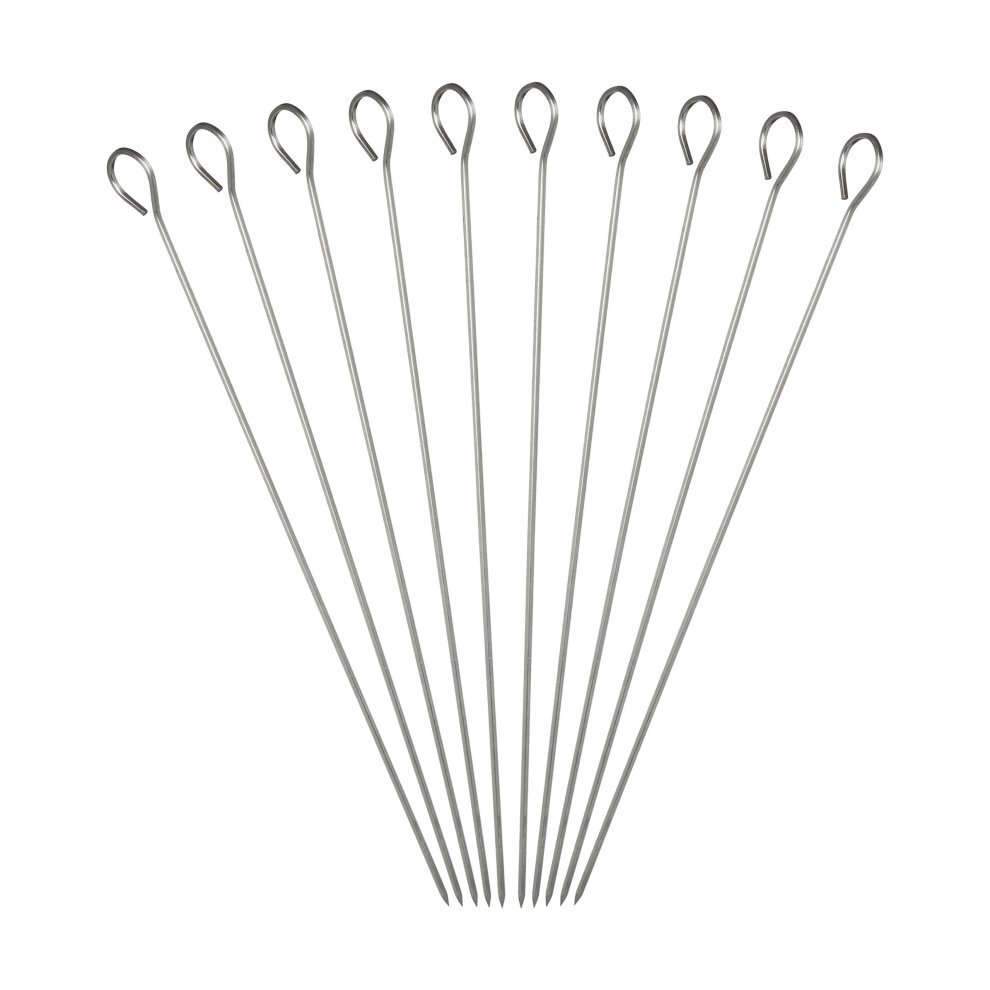

Stainless steel sticks for machine use
- 150mm
- 205mm
- 230mm
- 250mm
- 280mm

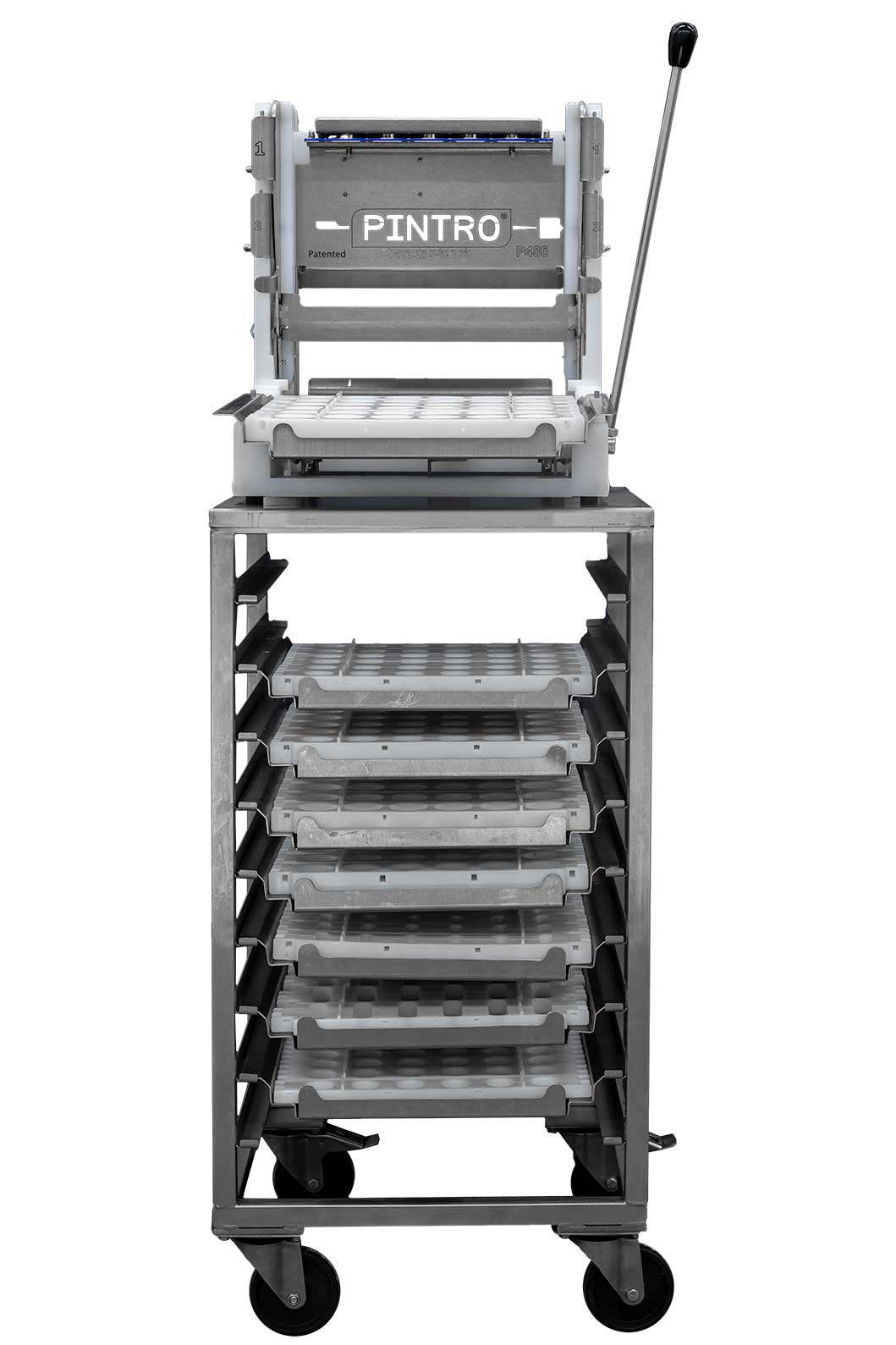

Working table / mobile rack (9 x DPN)
Storage space for up to 9 service plates under the top shelf which is used as working table. 4 swivel castors (2 are separately braked) allow for easy and safe mobility.
The advantages of the manual skewer machine P480.
PINTRO Skewer Machines enable you to mount products onto a skewer easily and hygienically, without sacrificing the artisanal appearance of the kebab, brochette or shashlik. PINTRO has a solution for smaller and mid-sized businesses as well as for industrial use. Meat, poultry, fish, vegetables, fruit, candy… PINTRO P480 skewers it all.
The appliance’s principle is a globally patented idea from a butcher who made skewers on a large scale and who devoted his time searching for a more efficient solution to produce skewers, without sacrificing their artisanal nature. In 2007, he joined hands with SMO to continue developing the device into a market-ready product.
Ergonomic
Artisan
Hygienic
Efficient
Versatile
Safe
